Camera Assisted XY Calibration Tool

Embers Prototypes

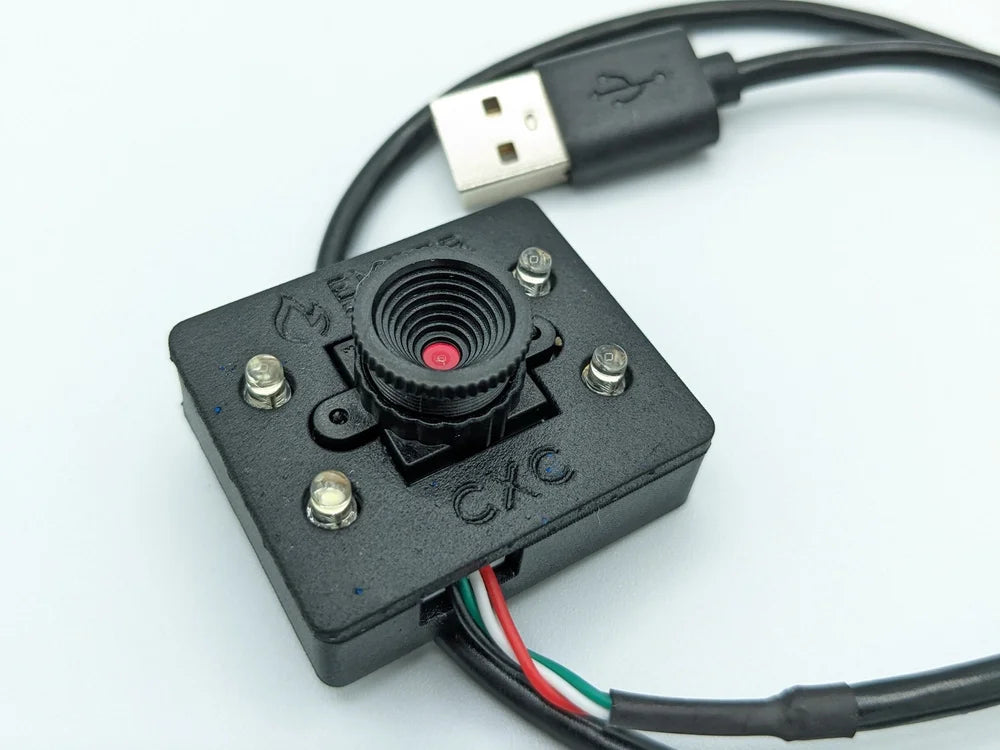

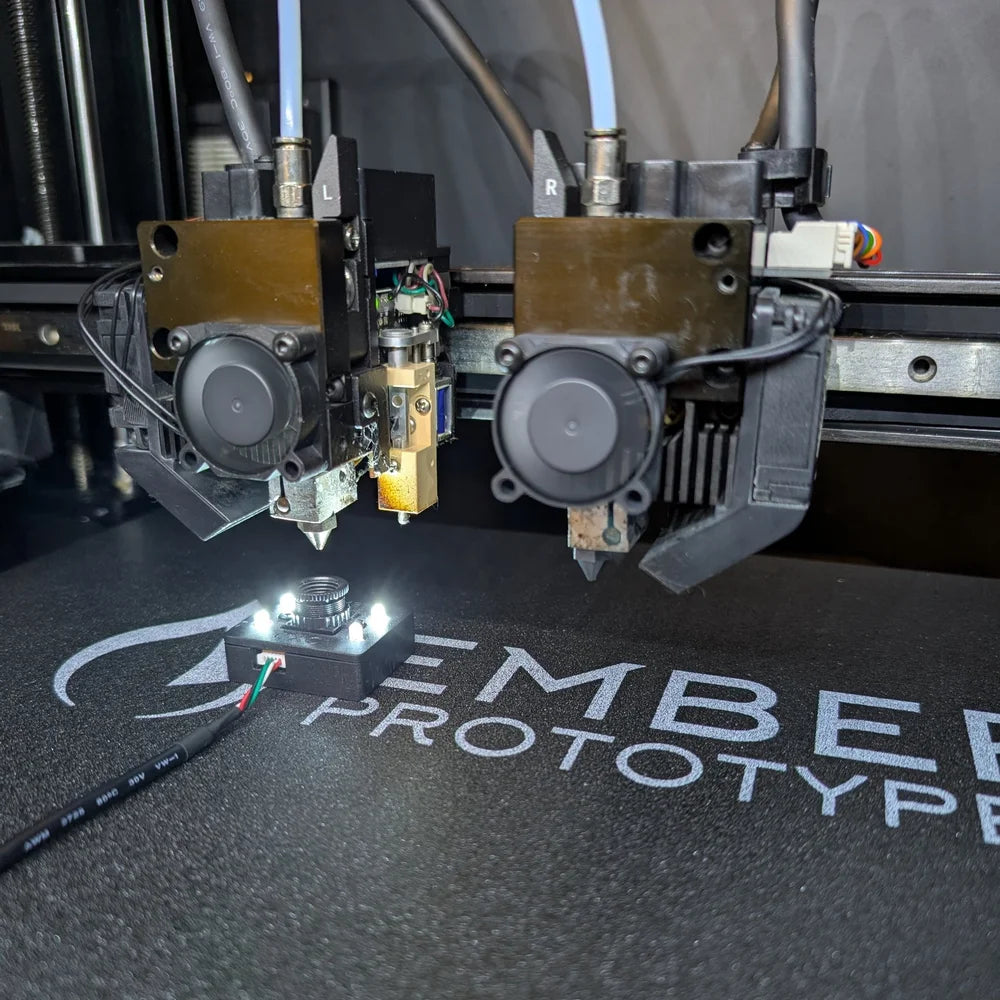

Camera-Assisted XY Calibration Tool (CXC) is a small device that performs XY offset calibration on dual extruder, IDEX, and tool changing 3D printers, without the need for printing line patterns. Calibrating your printer used to be a painstaking and time-consuming process that left room for human error. The CXC solves this problem for 3D printing operators by introducing a camera assisted calibration process.

The CXC was designed to be as simple and universal as possible. It can be installed on any printer and calibration takes less than 5 minutes.

Designed and assembled in Vancouver, Canada.

Requirements

• Any operating system (Windows program or cross platform web app)

• Ability to jog gantry 0.1mm or less and read the absolute position

• Ability to override XY calibration values (or tune offsets in the slicer)
