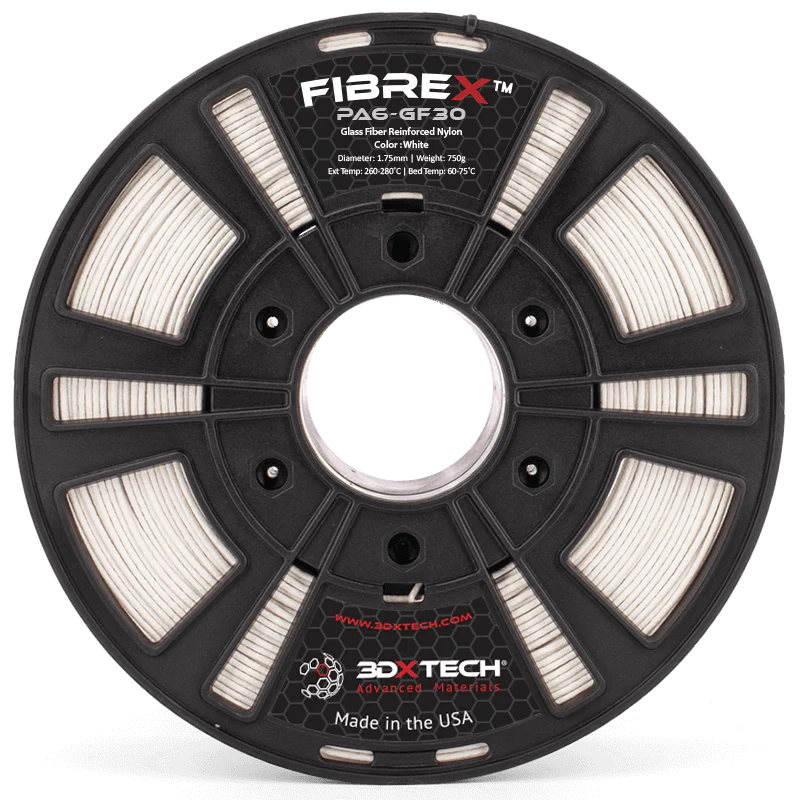

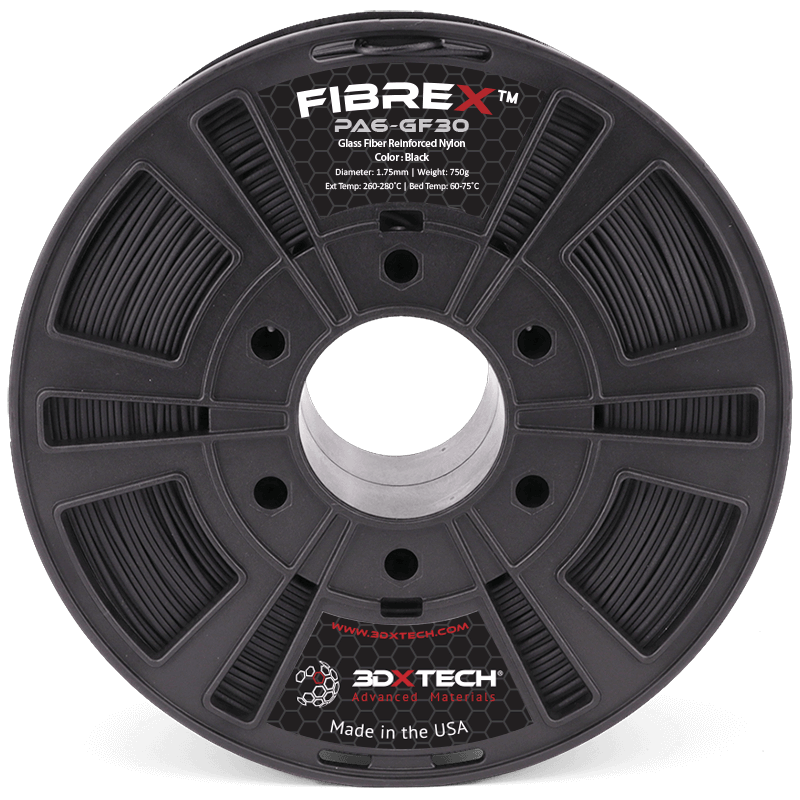

FIBERX PA6+GF30

FibreX™ PA6+GF30 glass fiber reinforced nylon copolymer is an engineering-grade material that has excellent mechanical and thermal properties [HDT of 170°C] while offering ease of printing in a wide array of desktop printers. This material is a must-have when printing functional prototypes and production parts.

Spool Size: 750g

Diameter: 1.75mm

FibreX™ Nylon+GF30 30% Glass Fiber Reinforced Nylon

3DXTECH’s Nylon+GF30 glass fiber reinforced Nylon 6 Copolymer (PA6) is nothing less than an industrial-grade beast! Formulated to be exceptionally stiff and strong, all without being brittle. Polyamides (PA) are the work horse of the plastics industry the world over thanks to their excellent mechanical, chemical, and thermal resistance. The addition of heavy glass fiber reinforcement takes it to the next level.

Benefits of Nylon+GF30 Include:

Printable on practically any 3D printer with a heated bed
Ideal for structural engineering-grade applications
Exceptionally stiff and strong, without being brittle
Excellent chemical resistance makes it suitable for automotive and industrial applications
Resists fuels, lubricants, heat, and mechanical loading
High thermal properties keep it strong up to 170°C in use, depending on printing and mechanical loads applied
Glass fiber reinforcement improves dimensional stability, reduces shrinkage, lift, and warp
Very strong layer bonding

Filament Specifications:

1.75mm +/- 0.05mm in diameter

Glass Fiber Reinforced Filament

Glass Fiber Zoom In
What Is It?

Fibers made of glass reinforced into the polymer during manufacturing and aligned along the axis of filament.

This, along with their physical makeup, give this material enormous strength and mechanical properties.

Nylon_GF30-TDS-v01

Recommended Print Settings:

• Extruder: 260-280°C
• Bed Temp: 60-75°C
• Nozzle: We currently recommend a hardened steel nozzle with a minimum diameter of 0.4mm
• Other: Ideal layer height is 60% of nozzle diameter. We do not recommend printing layers smaller than 0.25mm with glass fiber reinforced filaments
• Bed Prep: Magigoo Bed Prep or 3DXTECH Polyimide Tape gives us the best results
• Heated Chamber: Not required, but a 30-80°C chamber does improve layer bonding and finished part mechanical properties
• Supports: AquaTek™ water soluble X1 USM Universal Support Material works ideal for complex parts.
• Drying Instructions: 90°C for 4 hours.

Abrasive Material

This material is particularly abrasive among 3D printing filaments. Users may find standard brass nozzles are chewed through very quickly compared to standard wear and tear. When worn through, the nozzle diameter will widen inconsistently and the printer will experience extrusion issues.
Use hardened steel nozzles with this filament to maximize toolhead life and quality of your prints!

Because of this, it’s strongly recommended this material be printed through a hardened steel nozzle rather than a softer metal. Hardened steel nozzles can often be inexpensive and easily installed depending on your printer manufacturer’s instructions.
