3DXTECH

FIBREX PEI+GF30 MADE USING ULTEM PEI

FIBREX PEI+GF30 MADE USING ULTEM PEI

Regular price $175.00 USD
Regular price Sale price $175.00 USD
Sale Sold out

FibreX™ PA6+GF30 glass fiber reinforced nylon copolymer is an engineering-grade material that has excellent mechanical and thermal properties [HDT of 170°C] while offering ease of printing in a wide array of desktop printers. This material is a must-have when printing functional prototypes and production parts.

Spool Size: 500g

Diameter: 1.75mm

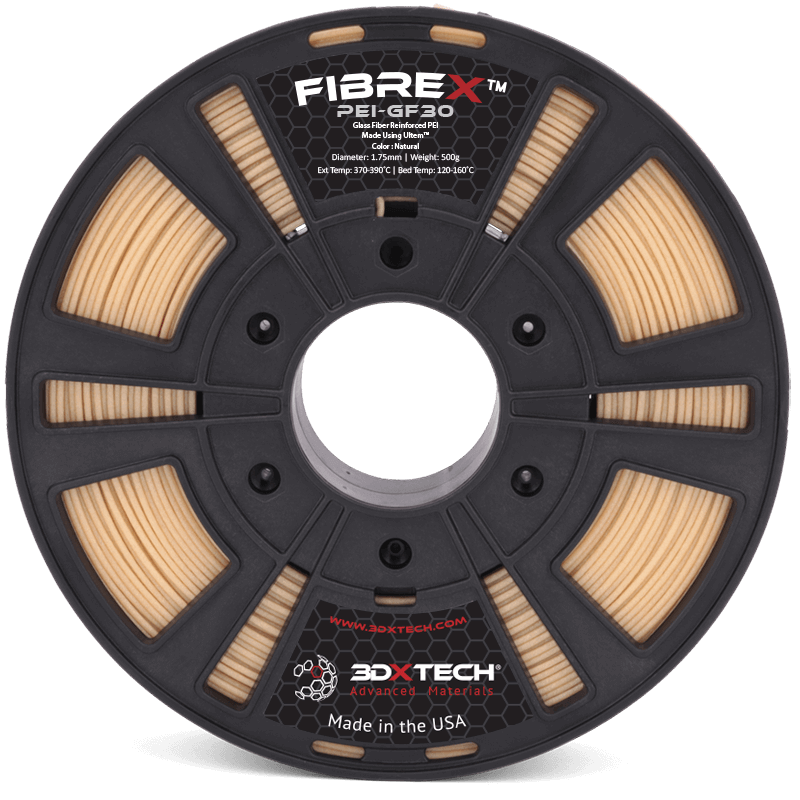

FibreX™ PEI+GF30 Glass Fiber Reinforced 3D Printing Filament, Made Using ULTEM™ 1010 PEI

Ultra-performance 30% glass fiber reinforced 3D printing filament using real ULTEM PEI (polyether imide) resin from Sabic. Filaments made from ULTEM resin offer the ability to create parts with excellent properties at elevated temperatures due to a high glass transition temperature (Tg) of 217°C.

PEI is an amorphous, high-performance polymer which combines excellent thermal properties, exceptional dimensional stability, inherent flame retardancy, and good chemical resistance.

Benefits of PEI+GF30 Include:

  • High thermal properties, with a Tg of 217°C and HDT of 212°C
  • Inherently flame-resistant
  • Long-term hydrolytic stability, making it easy to steam and autoclave
  • Excellent dimensional stability, low heat creep sensitivity, and a very low, uniform coefficient of thermal expansion create highly reproducible part-to-part dimensions
  • Exceptional strength and stiffness, even at elevated temperatures
  • Good resistance to a broad range of chemicals, include automotive fluids, fully halogenated hydrocarbons, alcohols, and aqueous solutions
  • Stable dielectric constant and dissipation factor over a wide range of temperatures and frequencies

Filament Specifications:

1.75mm +/- 0.05mm in diameter

Glass Fiber Reinforced Filament

Glass Fiber Zoom In
What Is It?

Fibers made of glass reinforced into the polymer during manufacturing and aligned along the axis of filament.

This, along with their physical makeup, give this material enormous strength and mechanical properties.




Recommended Print Settings:

  • Extruder: 370-390°C
  • Bed Temp: 120-160°C
  • Nozzle: We highly recommend a hardened steel nozzle with a minimum diameter of 0.4mm for abrasive materials such as this
  • Other: Ideal layer height is 60% of nozzle diameter. We do not recommend printing layers smaller than 0.2mm with abrasive filaments
  • Bed Prep: Nano Polymer Adhesive gives us the best results
  • Heated Chamber: Recommended, an enclosure helps reduce warping and improves print success.
  • Supports: ThermaX™ HTS High-Temp Support is designed to work with complex, high-temp materials just like this
  • Drying Instructions: 120°C for 4 hours

ULTEM™ is a registered trademark of Sabic Innovative Plastics.
3DXTECH manufactures this PEI+GF30 filament using ULTEM™ PEI resin.

Abrasive Material

This material is particularly abrasive among 3D printing filaments. Users may find standard brass nozzles are chewed through very quickly compared to standard wear and tear. When worn through, the nozzle diameter will widen inconsistently and the printer will experience extrusion issues.
