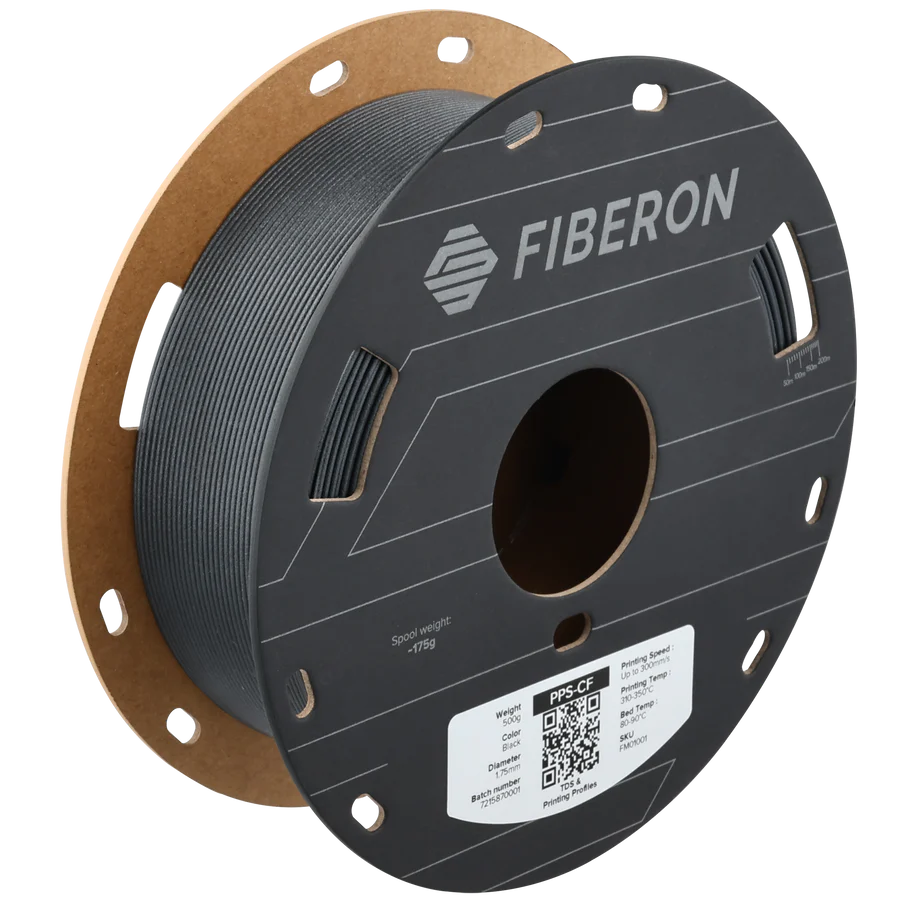

Fiberon™ PPS-CF10 is a carbon fiber reinforced (10%) PPS (polyphenylene sulfide) filament with minimal warping during printing and no need for a heated chamber. With exceptional mechanical strength, high heat resistance, chemical resistance, V-0 flame retardancy and moisture insensitivity, it is specifically designed for professionals operating in extreme conditions.
Density: 1.29 g/cm³
Print Settings
Printing temperature: 310°C – 350°C
Build plate temperature: 80°C – 90°C
Chamber temperature: room temperature
Printing speed: up to 300 mm/s
Cooling fan: OFF
Direct drive retraction: 3 mm / 40 mm/s — indirect drive: 6 mm / 60 mm/s
Drying (only if the material has absorbed moisture): regular oven 100°C for 10 h, or PolyDryer™ Level 3 for 18 h

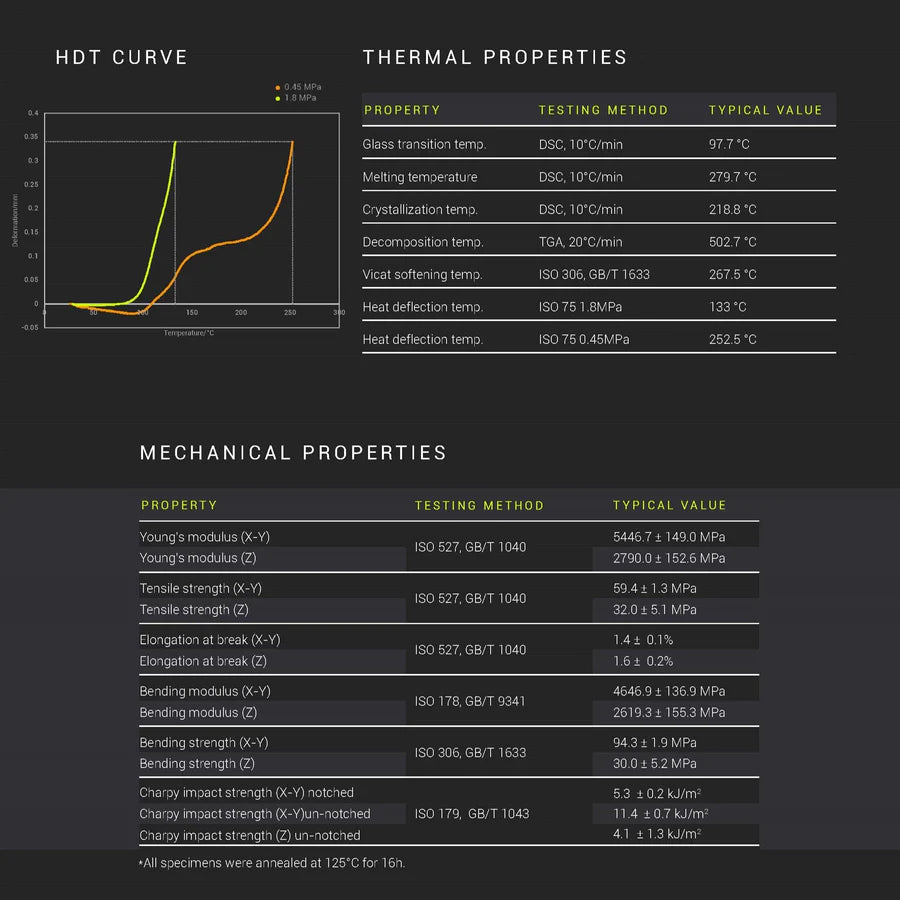

Annealing: 125°C for 16 h (TDS test samples were printed and annealed at the recommended conditions)
Printing Requirements
All-metal hotend 310°C+
Hardened nozzle (carbon fiber is abrasive)
Annealing post printing
Store and use under dry conditions (relative humidity below 20%)
You'll want a hardened nozzle for this — glass and carbon fibers eat brass nozzles. The copper-core CHT-style nozzle below also keeps flow up on high-temp materials. Nylon drinks moisture out of the air — print it from a drybox or dry it first, or you'll print bubbles and stringing no matter how good your tuning is.
Ships from our shop. Questions about shipping, returns, or lead times? Contact us — a human answers.
TESTED
Tested in our shop
Every product we list runs on our own machines before it earns a spot in the store. What you read here is what we measured — including the parts that failed.
