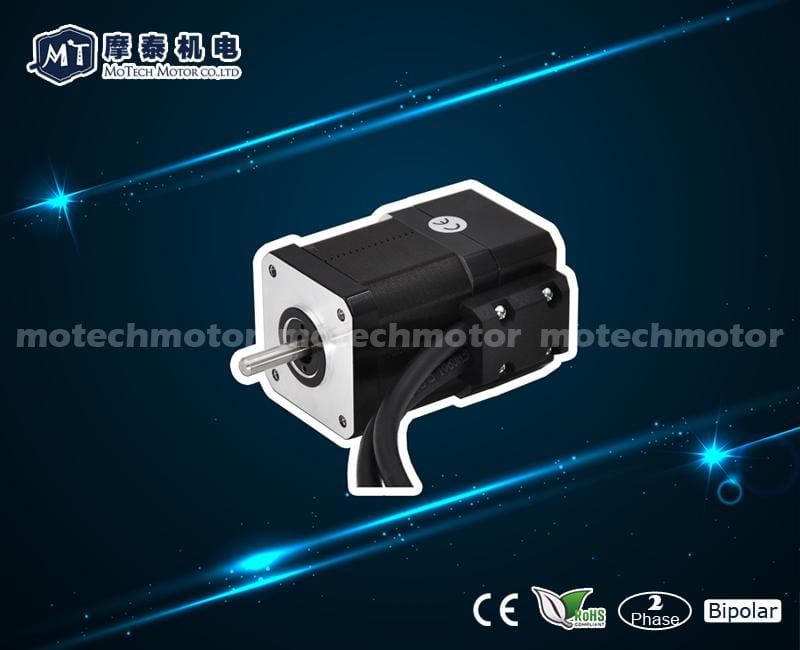

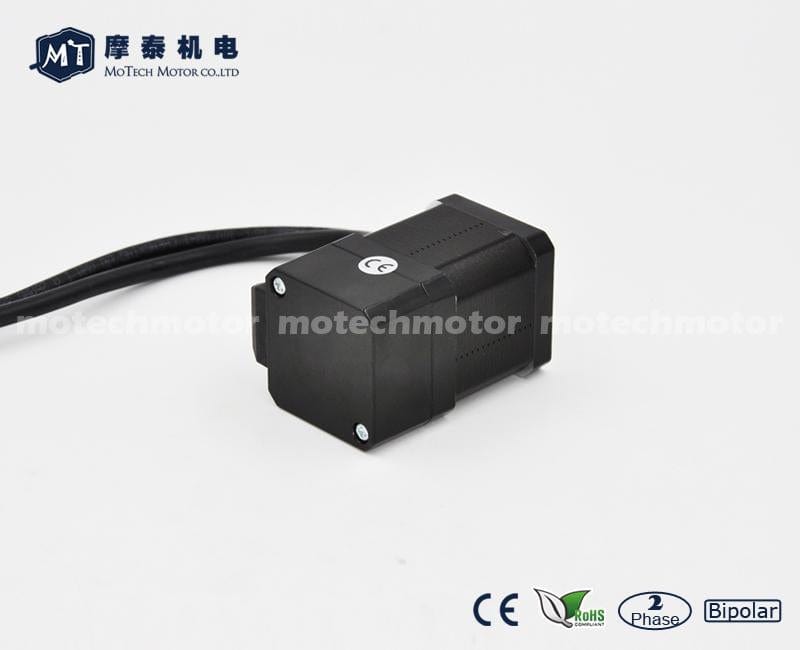

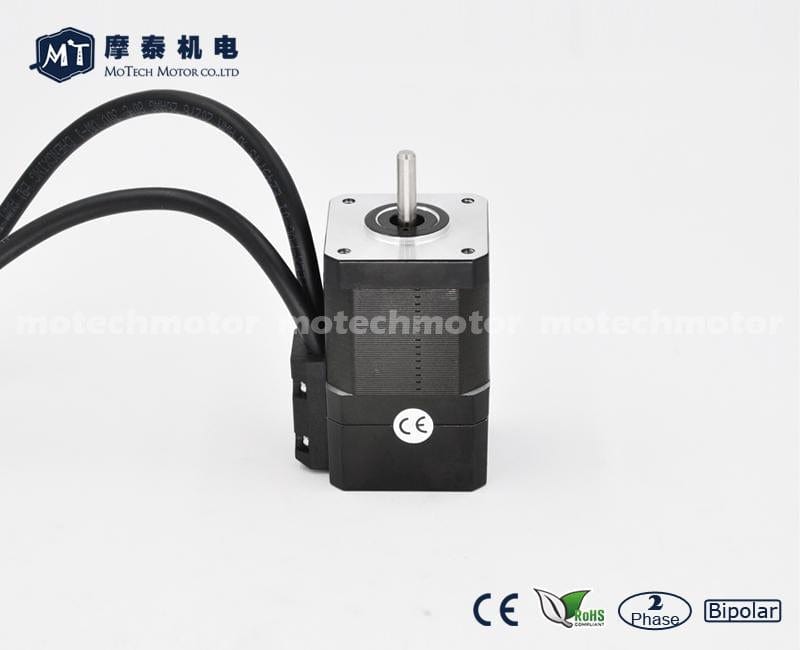

MoTech Motor offers premium quality closed loop Stepper Motors. HartSmart Products had these closed loop stepper motors custom made by MoTech to ensure they will work well in most 3D printers. As a part of our customizations, all of these NEMA 17 stepper motors include:
27mm shaft length
Full-length D-cut for a flat side the entire length of the 27mm shaft
NOTE: Closed Loop Steppers will require a Closed Loop Stepper Driver, and are not drop-in replacements for Open Loop Stepper Motors.
Motor Specifications
Motor Length
Model #
Step Angle
Rated Current
(Amps/Phase)
Holding Torque
(oz.in)
Holding Torque
(kg.cm)
Resistance
(Ohms/Phase)
48mm+20mm (68mm total)
MT-1704HS200EC-1000
1.8°
2.00
83.3
6.0
1.4
60mm+20mm
(80mm total)
MT-1705HS200EC-1000
1.8°
2.00
114.0
8.2
2.0
Product Specifications
Item
Specifications
Degrees Per Step
1.8°
Step Angle Accuracy
1.8°±5% (full step, no load)
Resistance Accuracy
±10%
Inductance Accuracy
±20%
Temperature Rise
80°C Max.(2 phase on)
Ambient Temperature
-20°C~+50°C
Insulation Class
B, 130°C
Insulation Resistance
100MΩMin. , 500VDC
Shaft Radial Play
0.02Max. (450 g-load)
Shaft Axial Play
0.08Max. (450 g-load)
Max. radial force
28N (20mm from the flange)
Max. axial force
10N
Resolution
1000 CPR
Speed Range
≤3000rpm
Encoder Specifications
Driving Voltage
5V
Current Consumption
≤50mA
Output Current
0-5mA
Output Method
Output Differential (Line Driver Output), Two Channels
