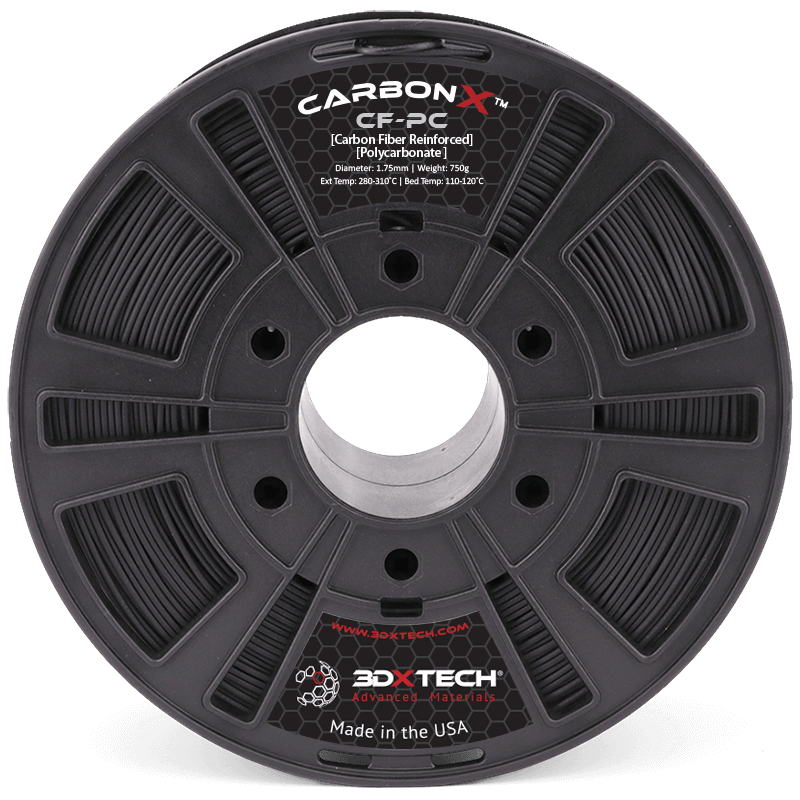

CarbonX™ PC+CF Carbon Fiber Reinforced Polycarbonate
CarbonX™ PC+CF is a high-performance carbon fiber reinforced polycarbonate filament. This material is ideal for anyone that desires a structural component with high heat, high stiffness, excellent surface quality, and dimensional stability. Polycarbonate has a Tg of 147°C and offers some of the highest thermal performance on the 3D printing market.
Benefits of CarbonX™ PC+CF Include:
- High thermal properties, Polycarb itself has a Tg of 147°C
- Amorphous structure gives it low, near isotropic shrinkage
- Further improved stiffness and dimensional stability with the addition of carbon fiber reinforcement
- Very low odor emitted while printing
- Wide processing range of 280-310°C
About the carbon fiber reinforcement: high-modulus carbon fibers (5-10 micrometers wide) are aligned along the filament axis, giving printed parts high stiffness, high tensile strength, low weight, low thermal expansion, and excellent dimensional stability. Carbon fiber reinforced parts are extremely popular in aerospace, motorsports, and any application that requires light weight and rigidity.
Filament Specifications:
1.75mm in diameter, 750g and 2kg spools, Black.
Recommended Print Settings:
- Extruder: 280-310°C
- Bed Temp: 110-120°C
- Nozzle: We recommend a hardened steel nozzle with a minimum diameter of 0.4mm.
- Layer Height: 0.25mm or higher
- Bed Prep: Magigoo Bed Prep Adhesive or Nano Polymer Adhesive gives us the best results
- Heated Chamber: Recommended
- Supports: Water-soluble AquaTek™ PVA works great for complex parts.
- Drying Instructions: 120°C for 4 hours.
Abrasive Material
This material is particularly abrasive among 3D printing filaments. Standard brass nozzles can be chewed through very quickly compared to standard wear and tear. When worn through, the nozzle diameter widens inconsistently and the printer will experience extrusion issues. Use hardened steel nozzles with this filament to maximize toolhead life and quality of your prints!
Technical data sheets: 3DXTECH TDS & SDS library · Slicer profiles: GitHub
You'll want a hardened nozzle for this — glass and carbon fibers eat brass nozzles. The copper-core CHT-style nozzle below also keeps flow up on high-temp materials.
