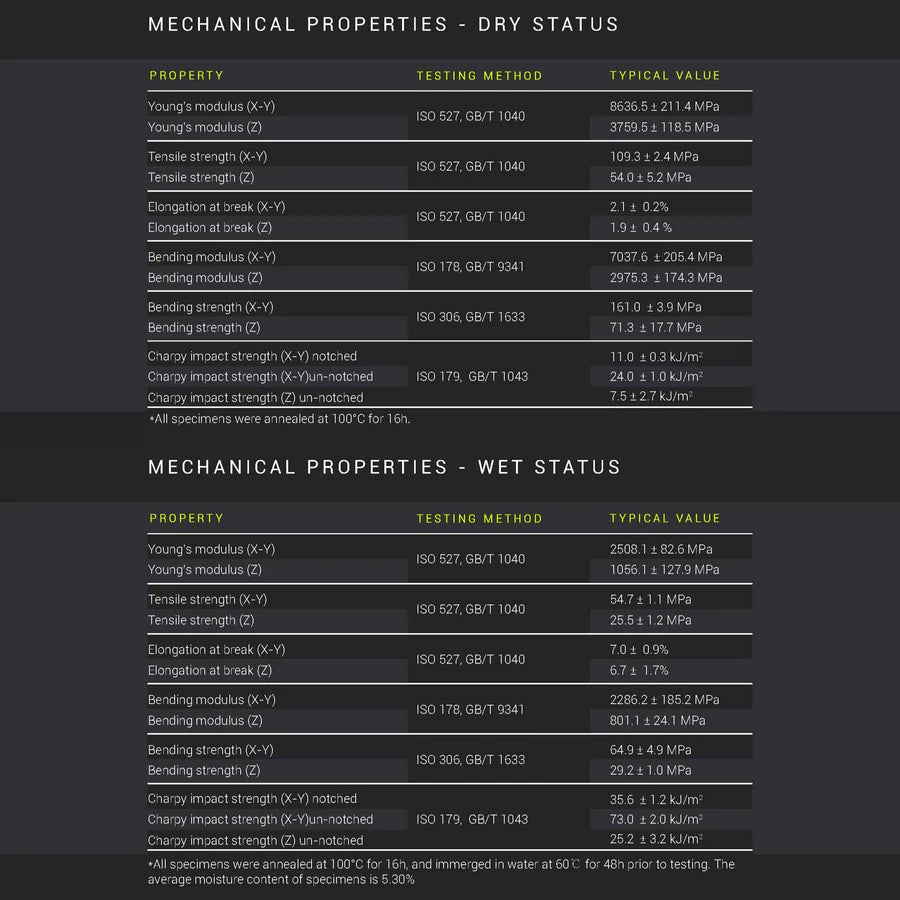

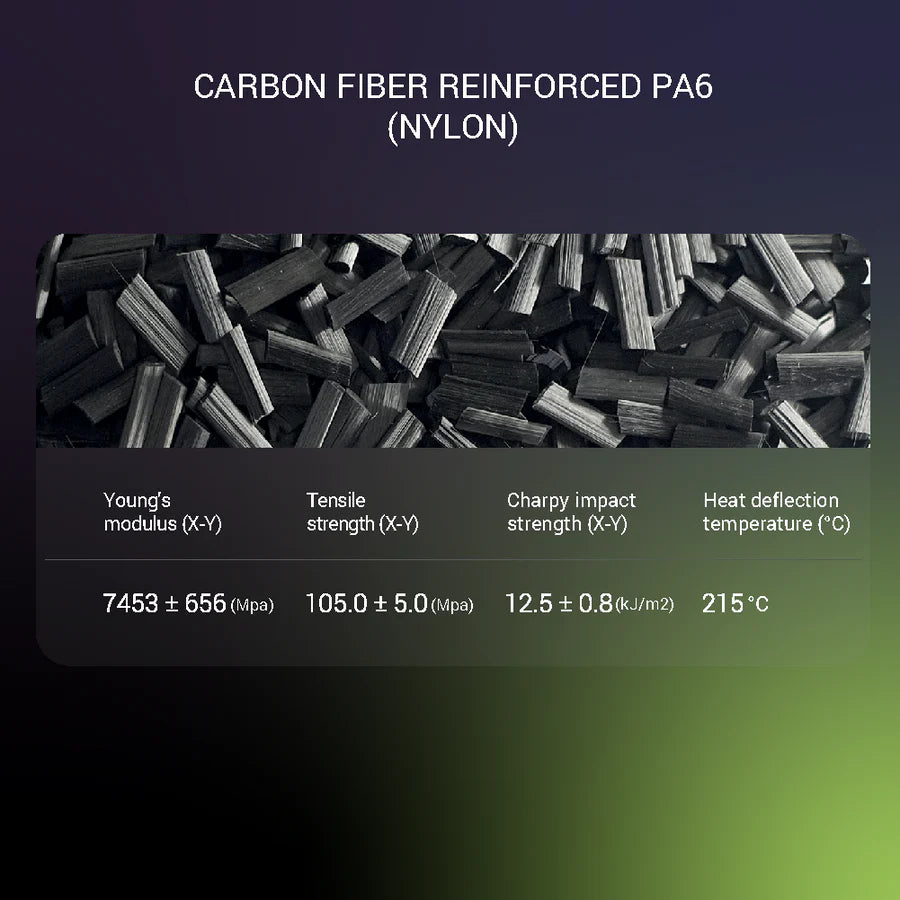

Fiberon™ PA6-CF20 is a carbon fiber reinforced (20%) PA6 (Nylon 6) filament. The carbon fiber provides significantly improved stiffness, strength and heat resistance with outstanding layer adhesion: tensile strength up to 109 MPa and Young's modulus over 8.6 GPa (XY), with heat resistance up to 215°C. Warp-Free™ technology delivers minimal warping and excellent dimensional stability, even on large parts.
Fiberon™ PA6-CF20 is the same great formula as PolyMide™ PA6-CF, although it may print in a slightly darker black shade than its predecessor.
Density: 1.17 g/cm³
Print Settings
Printing temperature: 280°C – 300°C
Build plate temperature: 40°C – 50°C
Chamber temperature: room temperature
Printing speed: up to 300 mm/s
Cooling fan: OFF
Direct drive retraction: 3 mm / 40 mm/s — indirect drive: 6 mm / 60 mm/s
Drying (only if the material has absorbed moisture): regular oven 100°C for 10 h, or PolyDryer™ Level 3 for 18 h
You'll want a hardened nozzle for this — glass and carbon fibers eat brass nozzles. The copper-core CHT-style nozzle below also keeps flow up on high-temp materials. Nylon drinks moisture out of the air — print it from a drybox or dry it first, or you'll print bubbles and stringing no matter how good your tuning is.
Ships from our shop. Questions about shipping, returns, or lead times? Contact us — a human answers.
TESTED
Tested in our shop
Every product we list runs on our own machines before it earns a spot in the store. What you read here is what we measured — including the parts that failed.
