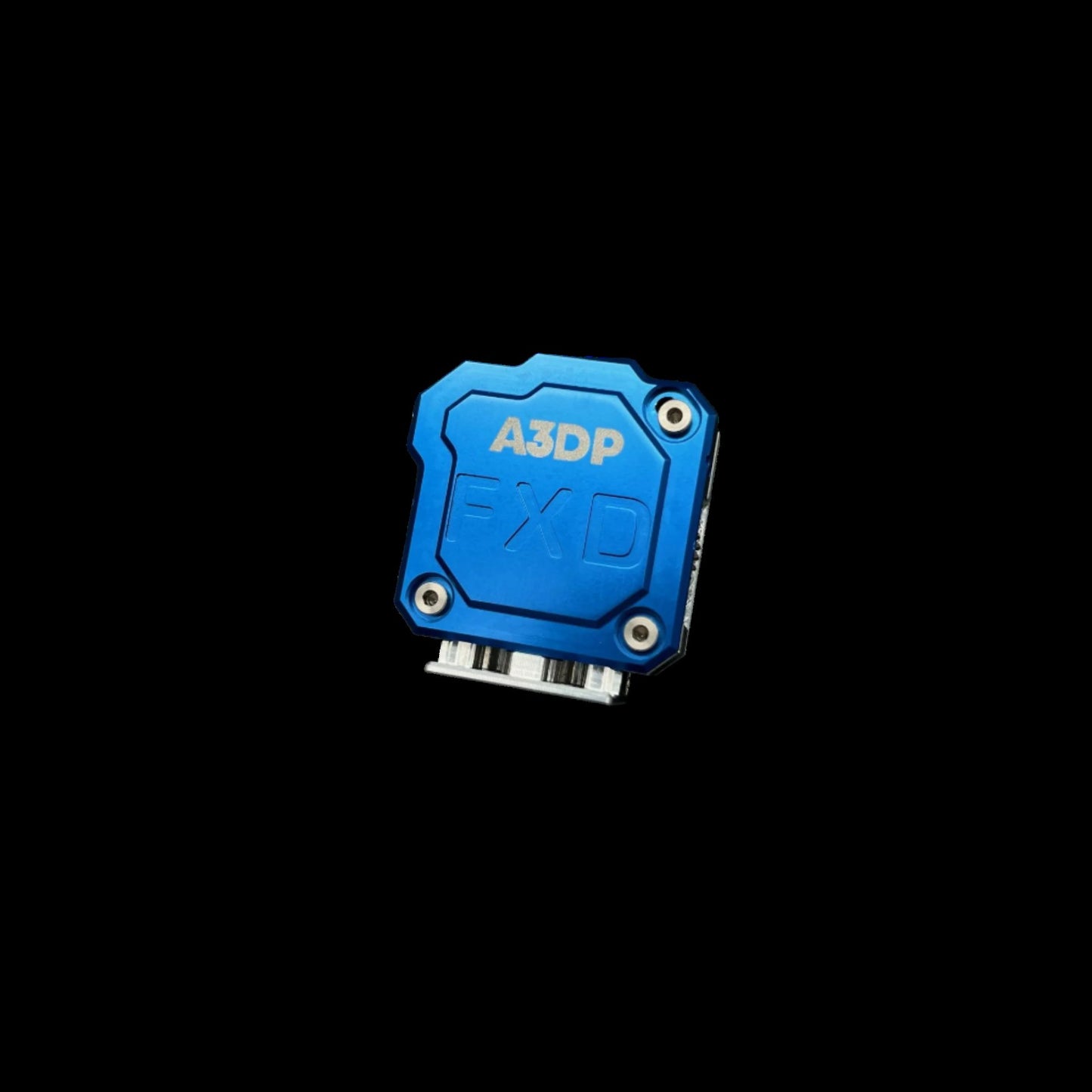

FXD (Fixed-gear Extruder v1.1)

FXD (Fixed-gear Extruder v1.1)

Regular price $200.00 USD
Regular price $250.00 USD Sale price $200.00 USD
Sale Sold out
option

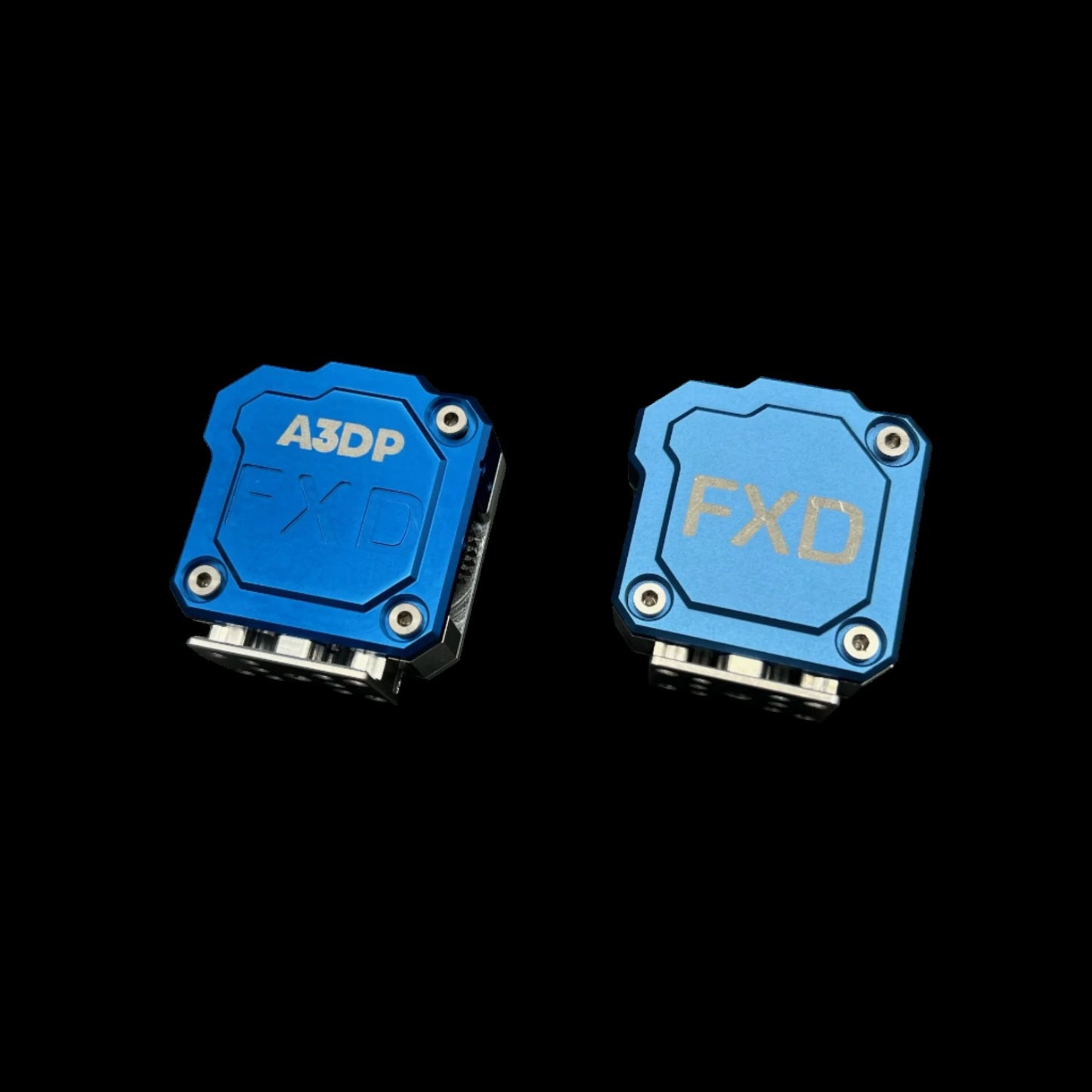

The wait is over. Our updated FXD has arrived!

Changes include fit, finish with an emphasis on tighter tolerances and improved adjustability.

We also changed the way we anodized the front face, giving the FXD a vibrant bright motorsport blue you may recognize on AN type fittings.

The FXD aka (Fixed-gear Extruder) features a robust construction from CNC machined aluminum, ensuring exceptional durability and stability. The aluminum not only enhances the extruder’s overall strength but also provides a sleek and modern aesthetic that will complement any 3D printer.

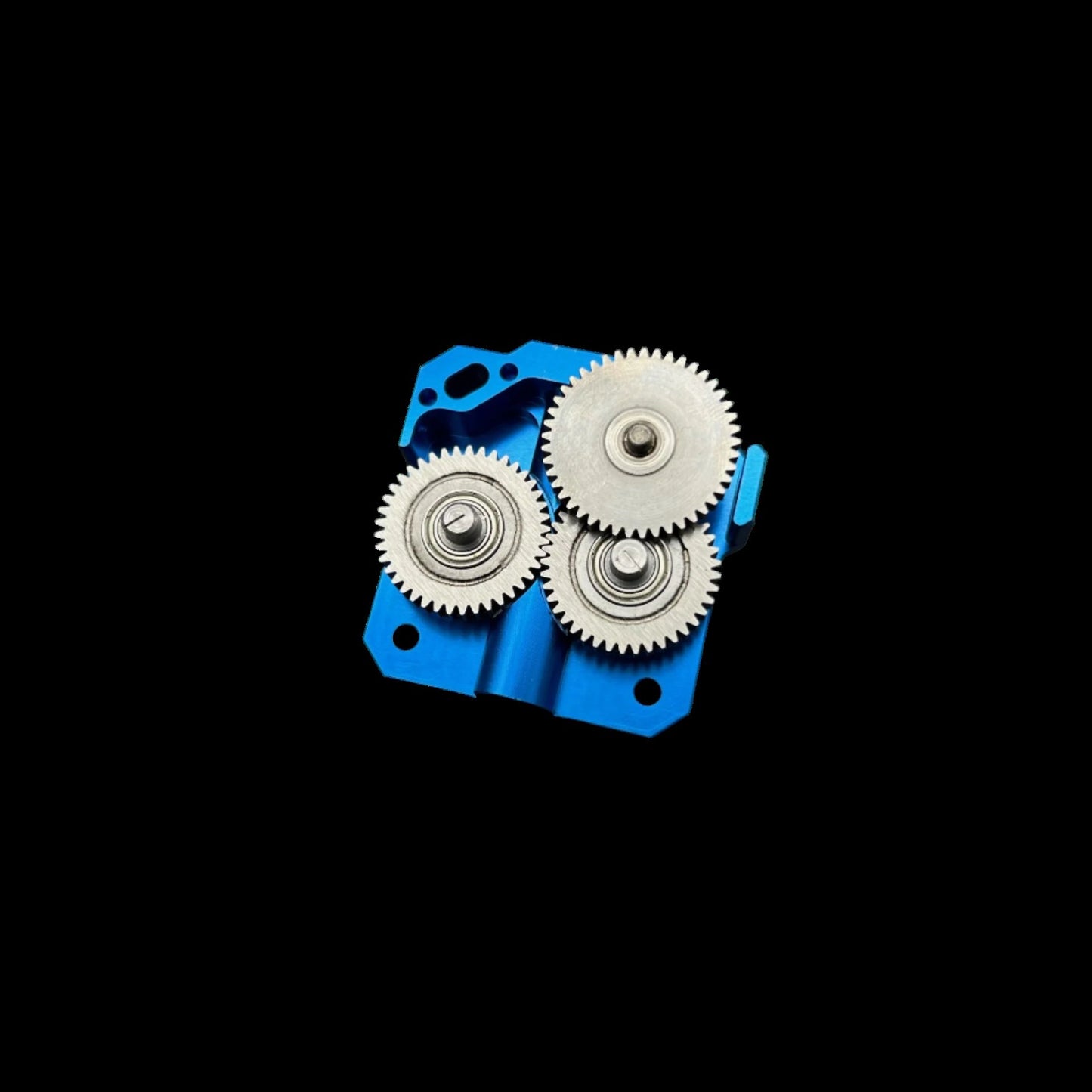

One of the standout features of the FXD is its monolithic steel gears. These gears are engineered to withstand rigorous usage, maintaining their integrity and performance even under high stress. Incorporating custom-made hardened steel gears ensures smooth and consistent filament feeding, reducing the risk of jamming or filament slippage during printing.

We went even further to enhance the FXD reliability by utilizing a fixed-gear drive mechanism. This unique design combined with a 100% constrained filament path, eliminates any possibility of slip or grinding of the filament, even 60a and lower shore hardness flexibles.



*Each unit is hand assembled and gears matched on order. please allow 1-2 business days for assembly when placing an order.

rotation_distance: 7.39 # FXD v1.1 Pro Motor
rotation_distance: 5.29 # FXD v1.1 moons 10T N14
rotation_distance:  4.23 # FXD v1.1 LDO 8T N14
